SPECIFICATIONS
Angle Ranging Accuracy: 0.3°
Angle Ranging Scope: ±90°
Application: for Hunting Golfing Engineering Surveys Construction
Battery Included: Yes
Brand Name: Nohawk
Certification: CE,RoHS,weee
Distance measurement display method: LCD display
Focusing method: Manual focusing of eyepiece
High-concerned chemical: none
Laser hazard level: Class 1（<1mW）
Laser wavelenght: 905nm
Lock Type: none
Measurement Accuracy: ±1 yard/meter
Measuring range: 5-600/5-1000yds/m
Model Number: 3M02-600/1000-A-LI-W/B
NOHAWK Model: 3M02
Net weight: 154g
Operation Mode: Manual
Origin: Mainland China
Power Type: Rechargeable

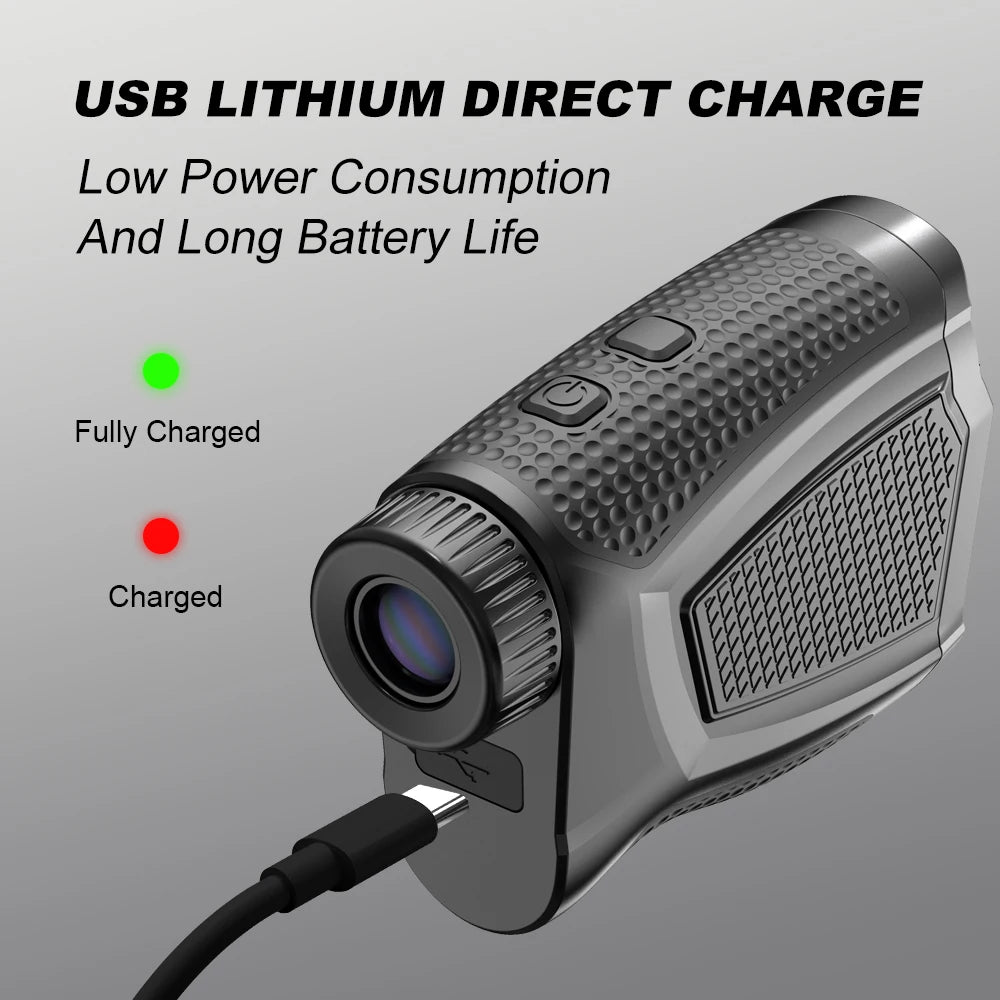

Power supply: Type C charging

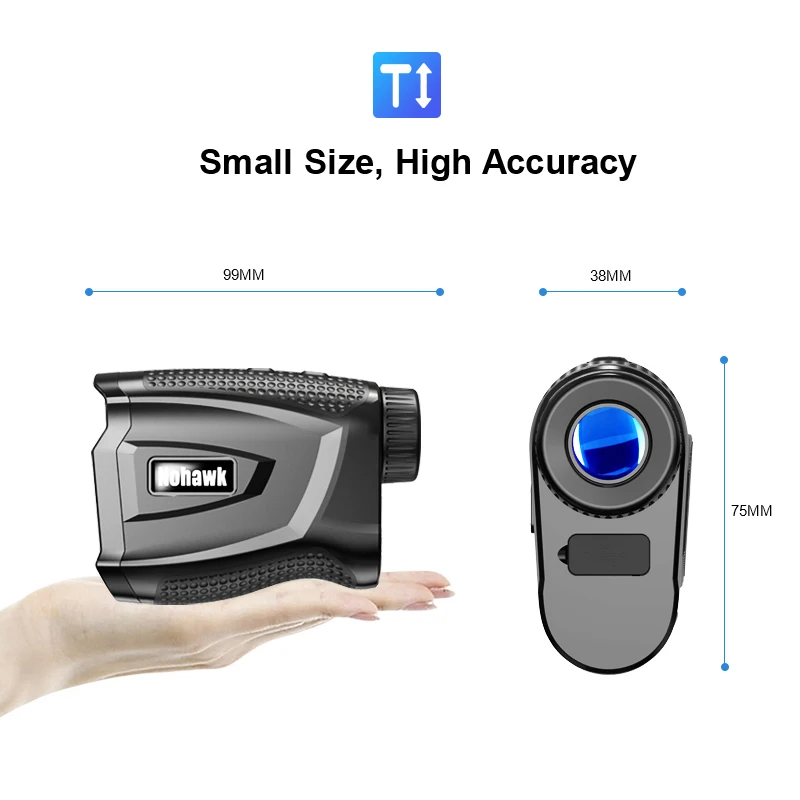

Product dimensions: 99X38X75mm
Product name: Laser Golf Rangefinder
Semi-finishedproduct: No
Size: 99X38X75mm
Supported units: yd (yard)/ m (meter)

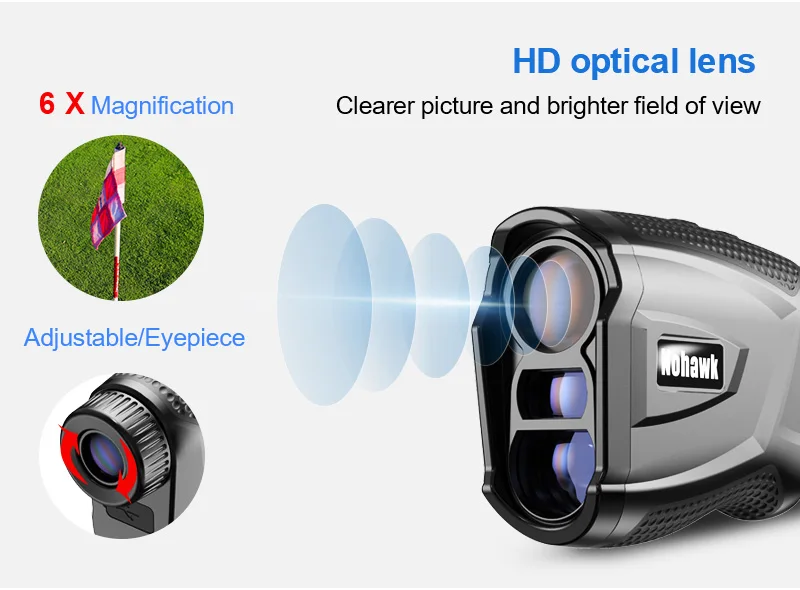

Telescope magnification: 6X
Working temperature: -20~50 ℃
NOHAWK Multifunctional Laser Rangefinder 600/1000 Yards Golf Range Finder for Hunting Golf Engineering Surveys Construction
NOTE:
1.Do not view the target through the glass and avoid direct sunlight to the eyepiece for damaging the eyepiece, display/internal components.
Multifunctional-3M02:
1. Ranging Mode
Measure the distance from rangefinder to target.
2. All-in-One Mode
Measure the straight line distance,angle,vertical distance&horizontal distance.
3.Scanning Mode
Continuous measure straight line distance,angle,vertical distance &horizontal distance.
4.Two Point Height Measurement Mode
The mode can measure the vertical height difference between two targets.
5.Speed Measurement Mode
Under speed mode,the laser rangefinder can measure the speed of the target object moving in radial motion.

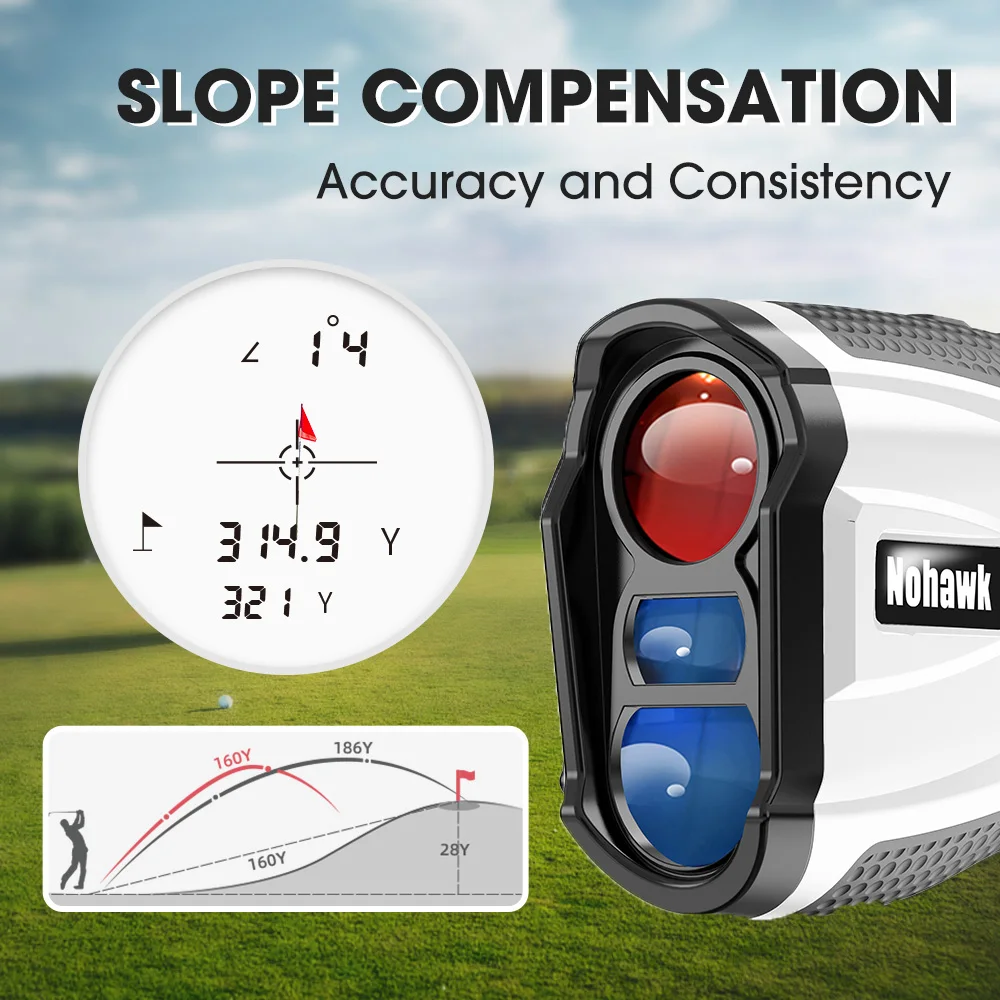

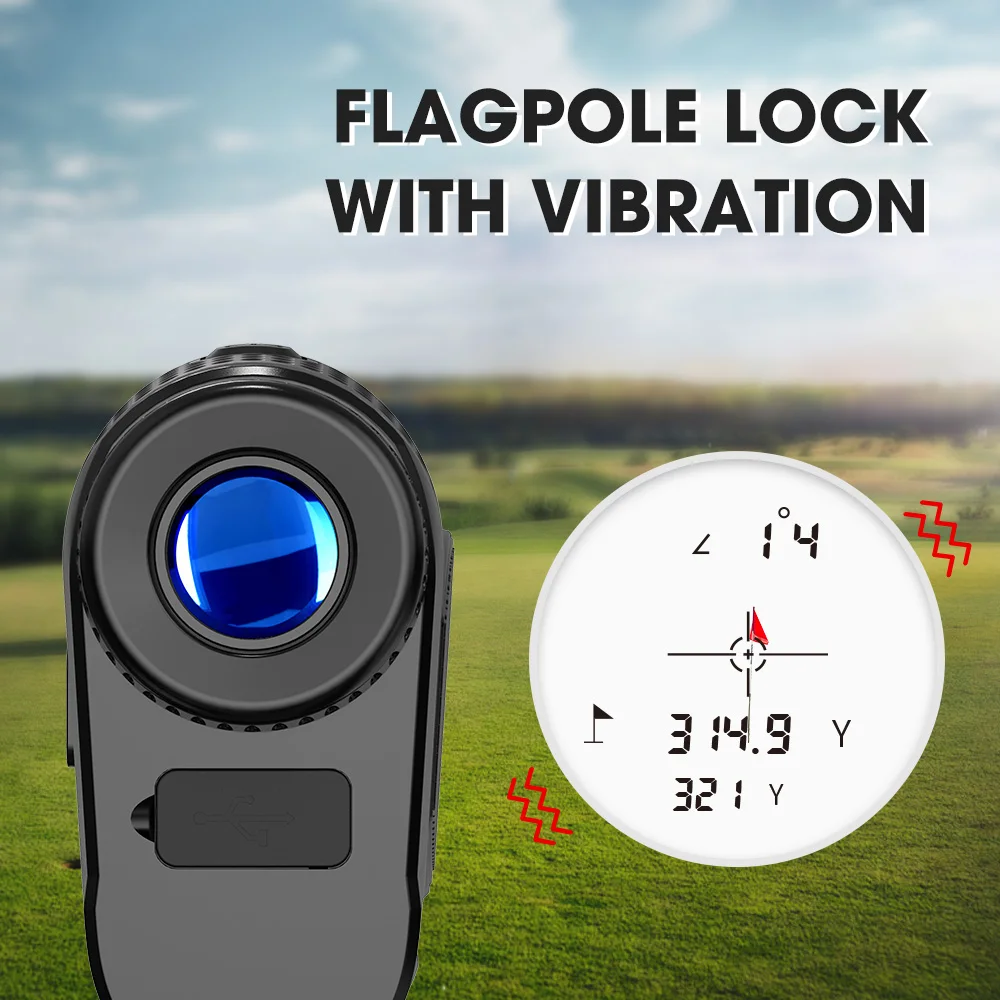

6.Golf Mode (with Flagpole Lock and Vibration, Slope Compensation)
7.Storage Function
Press mode button to switch the storage function,display shows "Lb". Press power button continuously to view the data.
Golf-3M02:
Q&A about the golf rangefinder
1.Why is the measurement inaccurate?
Improper selection of measurement mode: Please read user manual carefully and choose the appropriate measuring mode according to your own needs before using golf rangefinder.
The target of measurement is not clear, too small or uneven, woods, dark objects, glass, etc.
Affected by the environment, such as rainy, foggy, oil smoke, suspended particulate matter, night or dim environment, etc.
2.How to switch between unit meters and yards?
Please long press Power / Measurement Button and M button at the same time, holding for 5 seconds to switch units-yd (yard)/ m (meter).
